Key Features
4× Video Input Modules
Four dedicated video input module interfaces plus one general-purpose module
interface for maximum flexibility.
USB PD EPR – 240 W
USB Power Delivery 3.2 Extended Power Range delivers up to 240 W — enough to
drive the complete system from a single cable.
HDMI 2.1 up to 8K30
Full-bandwidth HDMI 2.1 output supports resolutions up to 8K at 30 fps for
display-intensive applications.
PCIe Gen 4 ×4
Full-size PCIe Gen 4 ×4 expansion slot alongside 2× USB-C 3.2 for
high-throughput peripheral connectivity.
Gigabit Ethernet
Integrated GigE for reliable network connectivity in industrial and edge
deployments.
M.2 Expansion
M.2 M-Key for NVMe SSD storage and M.2 E-Key for Wi-Fi and Bluetooth modules.
GPIO expansion header included.
Variable Voltage Supplies
Each video-in module interface has an independently configurable voltage
supply from 5 V to 24 V at up to 1000 mA.
Modular Architecture
Swap input types without redesigning the baseboard. Hot-swap-friendly module
connectors reduce NRE and time-to-prototype.
Expansion Ecosystem
Available Input Modules
Plug in exactly the interface you need. Mix and match across the four video input slots

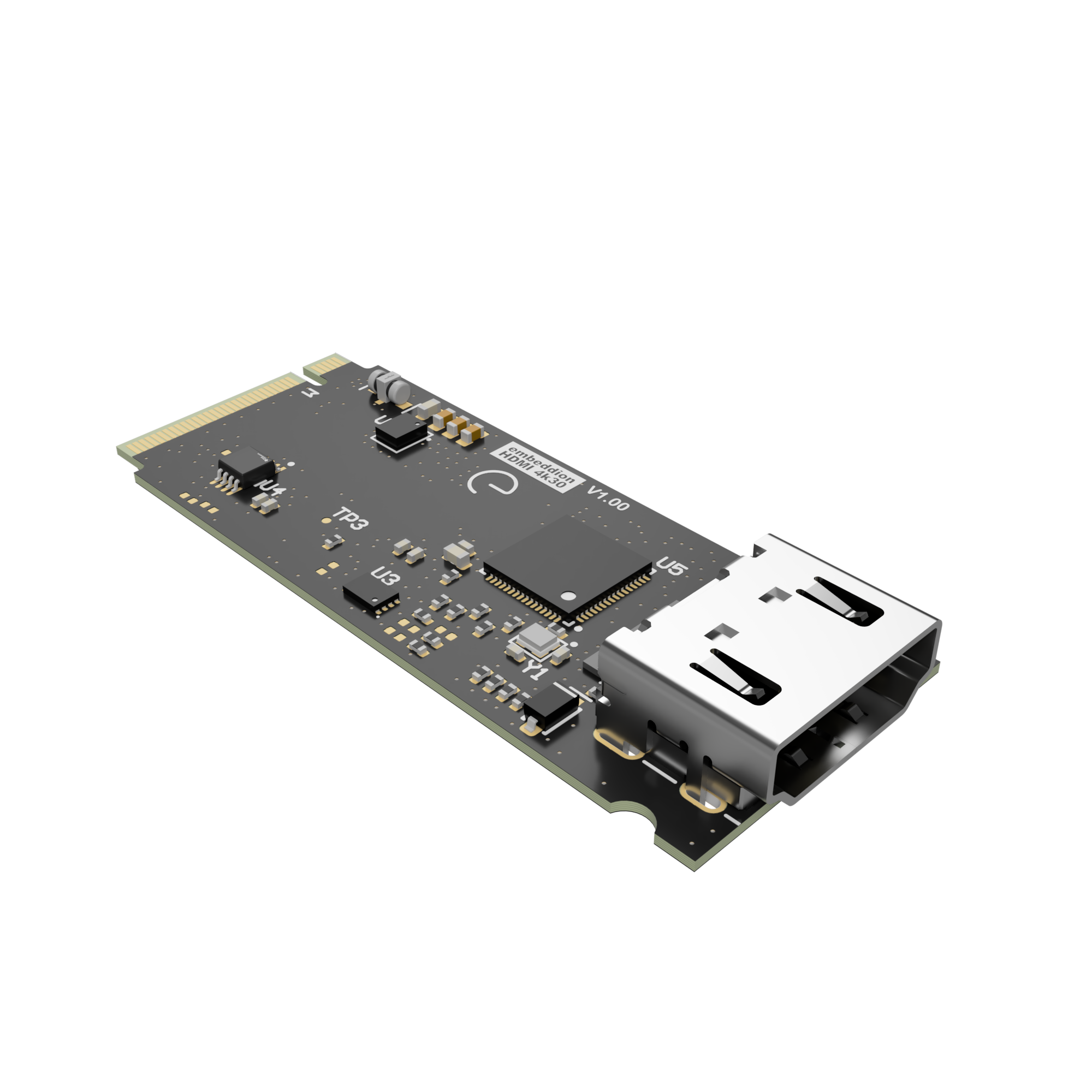

HDMI In 4K30 Module Video
- Lontium LT6911UXE bridge chip
- 2-lane CSI (5 Gbps)
- Up to 4K at 30 fps

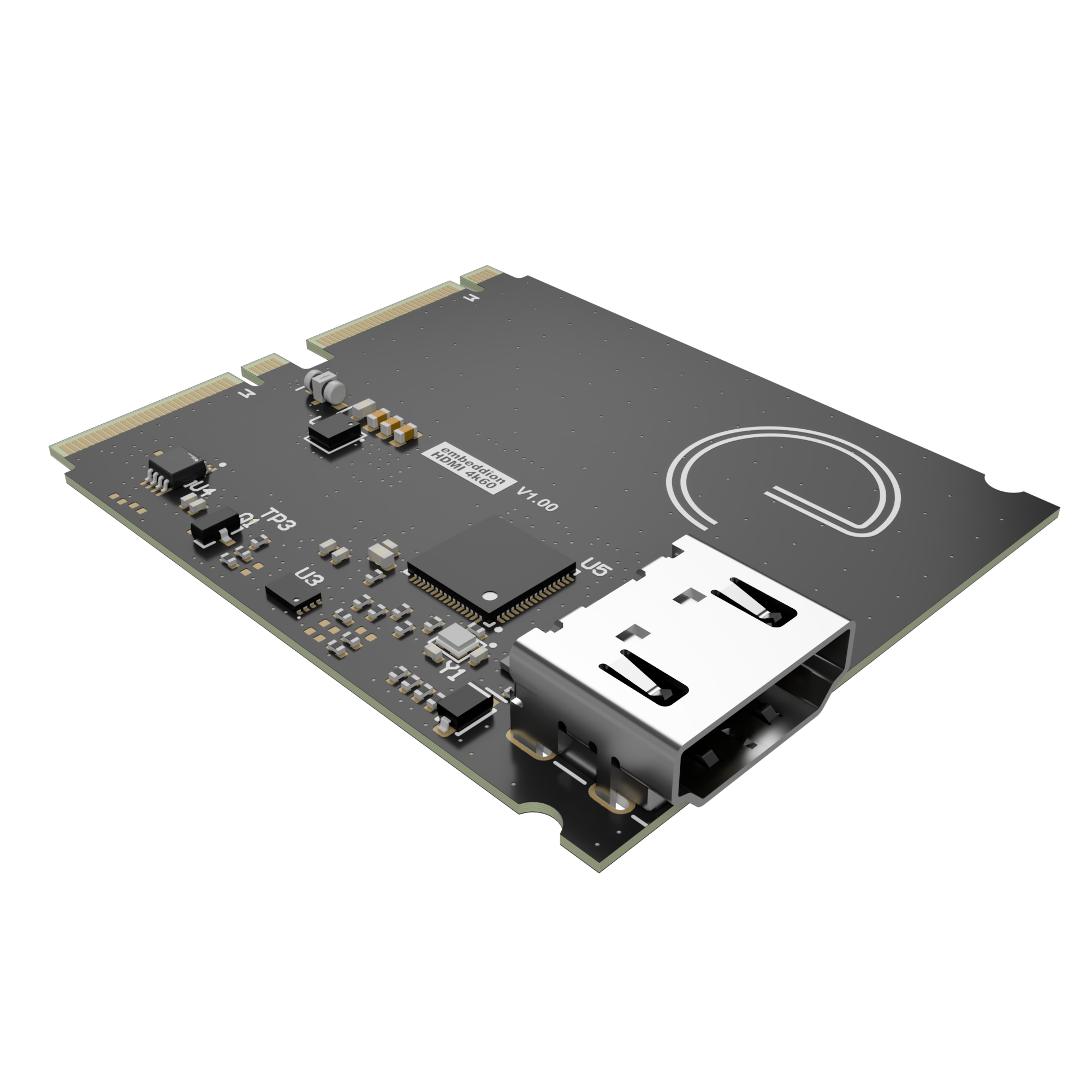

HDMI In 4K60 Module Video
- Lontium LT6911UXE bridge chip
- 4-lane CSI (10 Gbps)
- Up to 4K at 60 fps

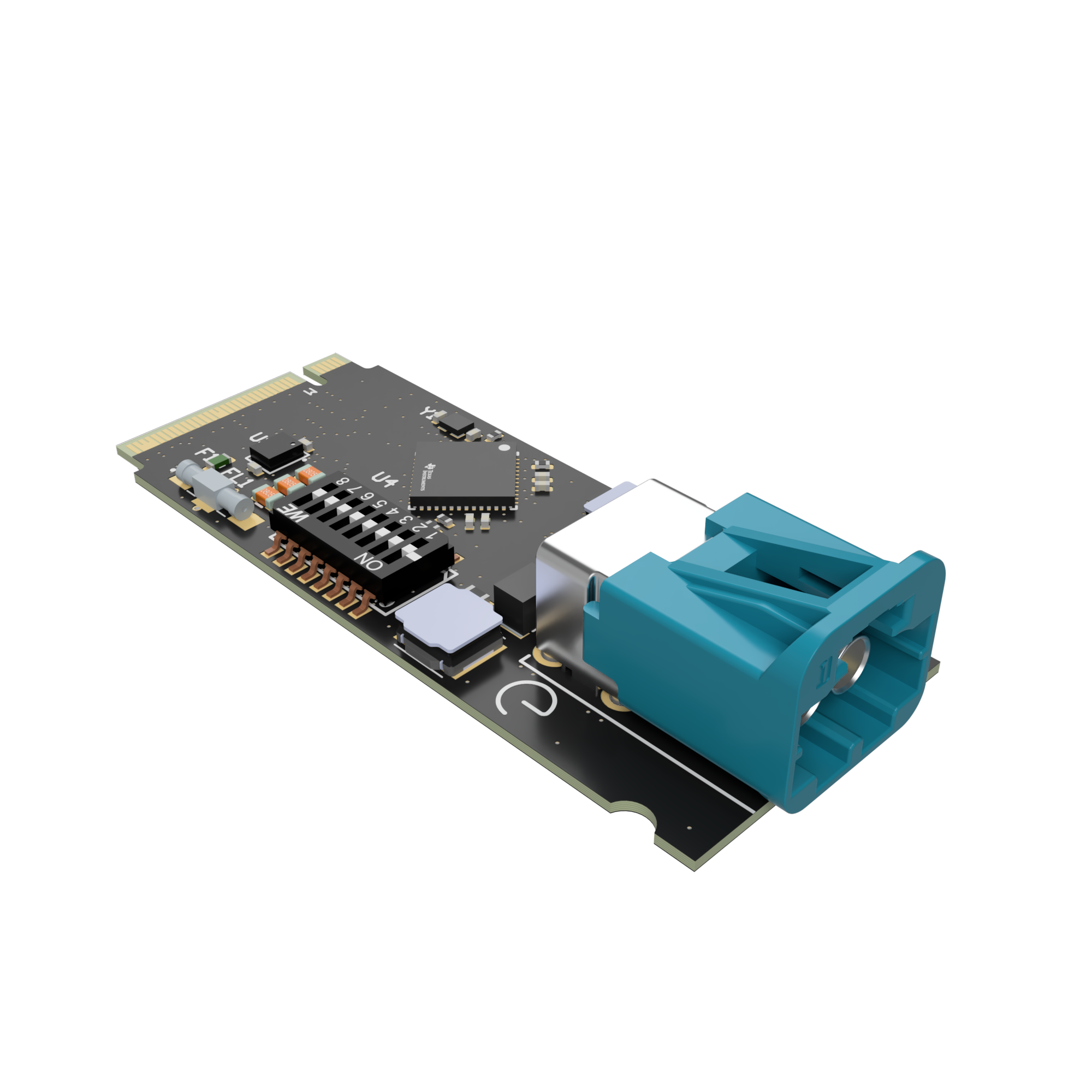

FPD-Link III Module Automotive
- Dual Mini-FAKRA Z connectors
- 2-lane CSI (5 Gbps)
- PoC 5–24 V / 1000 mA, selectable

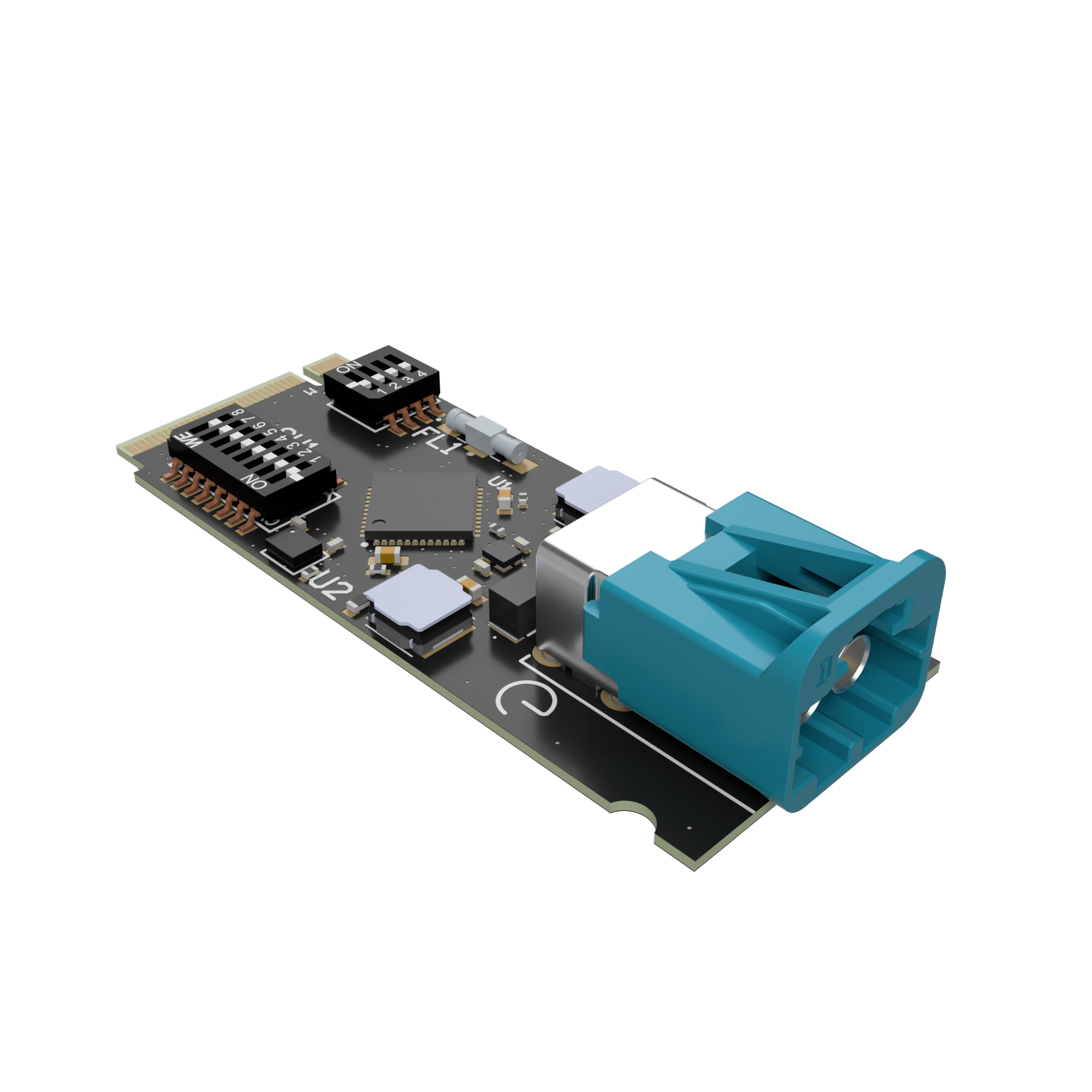

GMSL Module Robotics
- Dual Mini-FAKRA Z connectors
- 2-lane CSI (5 Gbps)
- PoC 5–24 V / 1000 mA, selectable

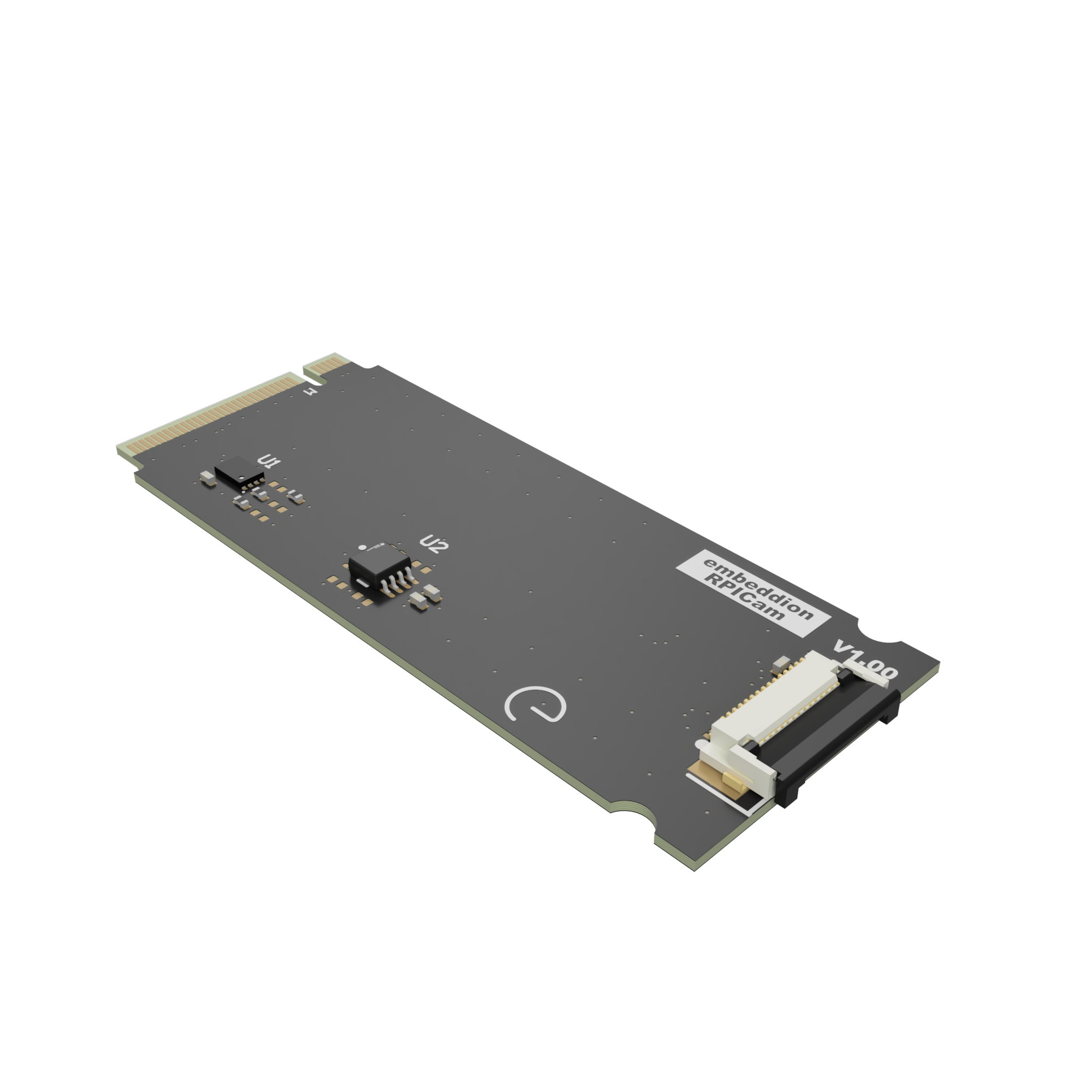

RPi Camera Module (15-Pin) Development
- Standard 15-pin FFC connector
- 2-lane CSI (5 Gbps)
- Compatible with broad RPi camera ecosystem

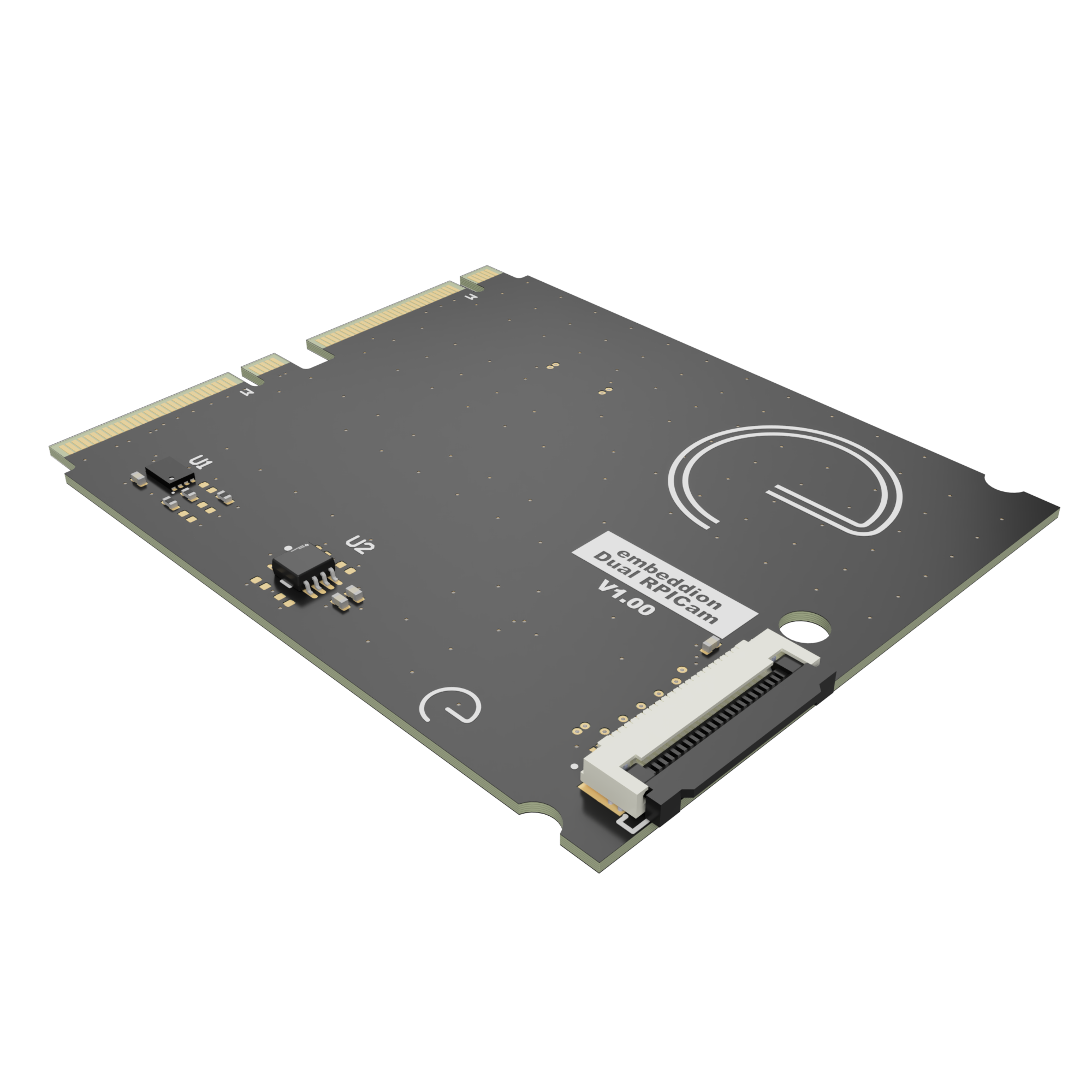

RPi Camera Module (22-Pin) Development
- 22-pin FFC connector
- 4-lane CSI (10 Gbps)
- High-throughput quad-lane operation

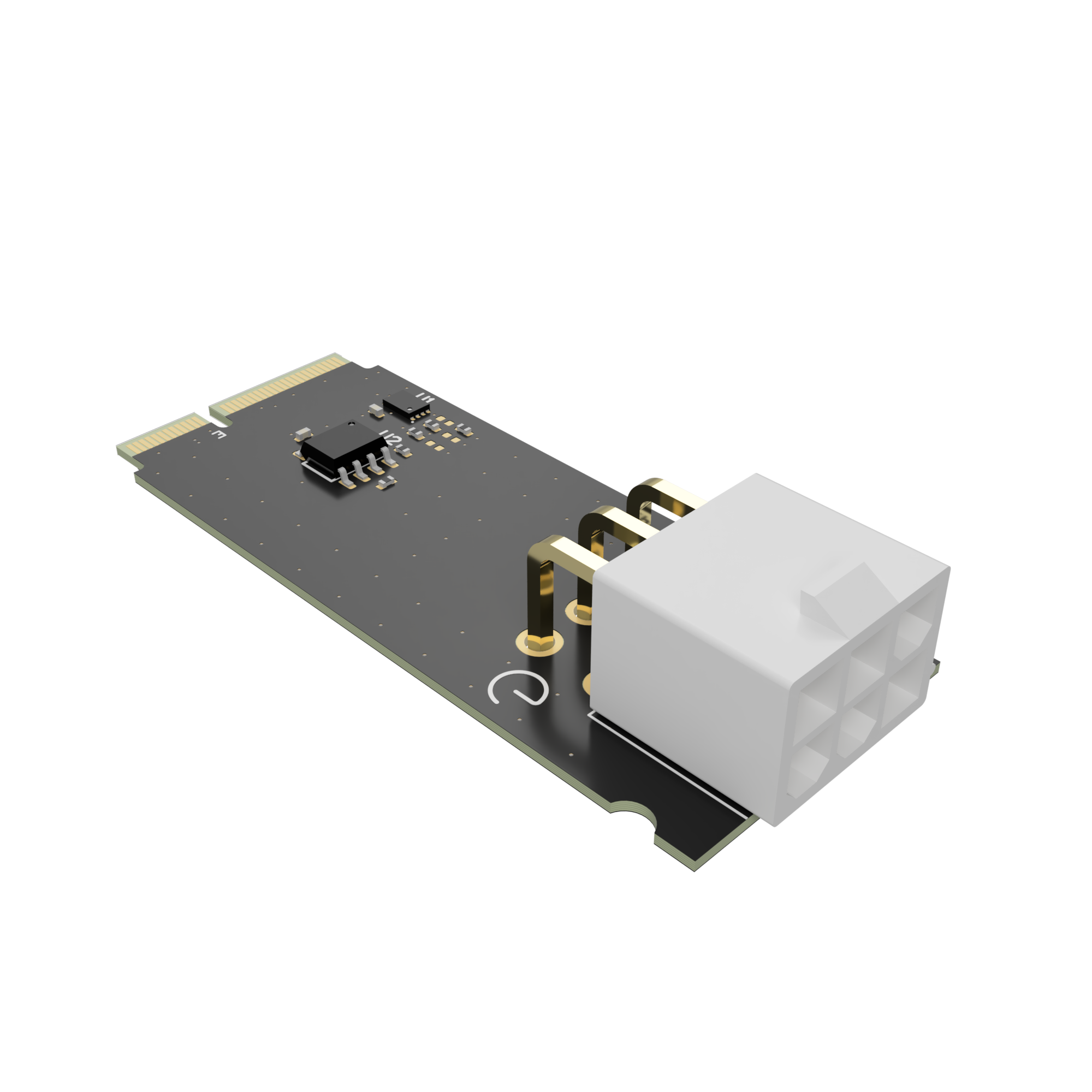

CAN Module Industrial
- CAN bus interface
- 4× GPIO
- Ideal for robotics and automotive integration
